Redox Processes

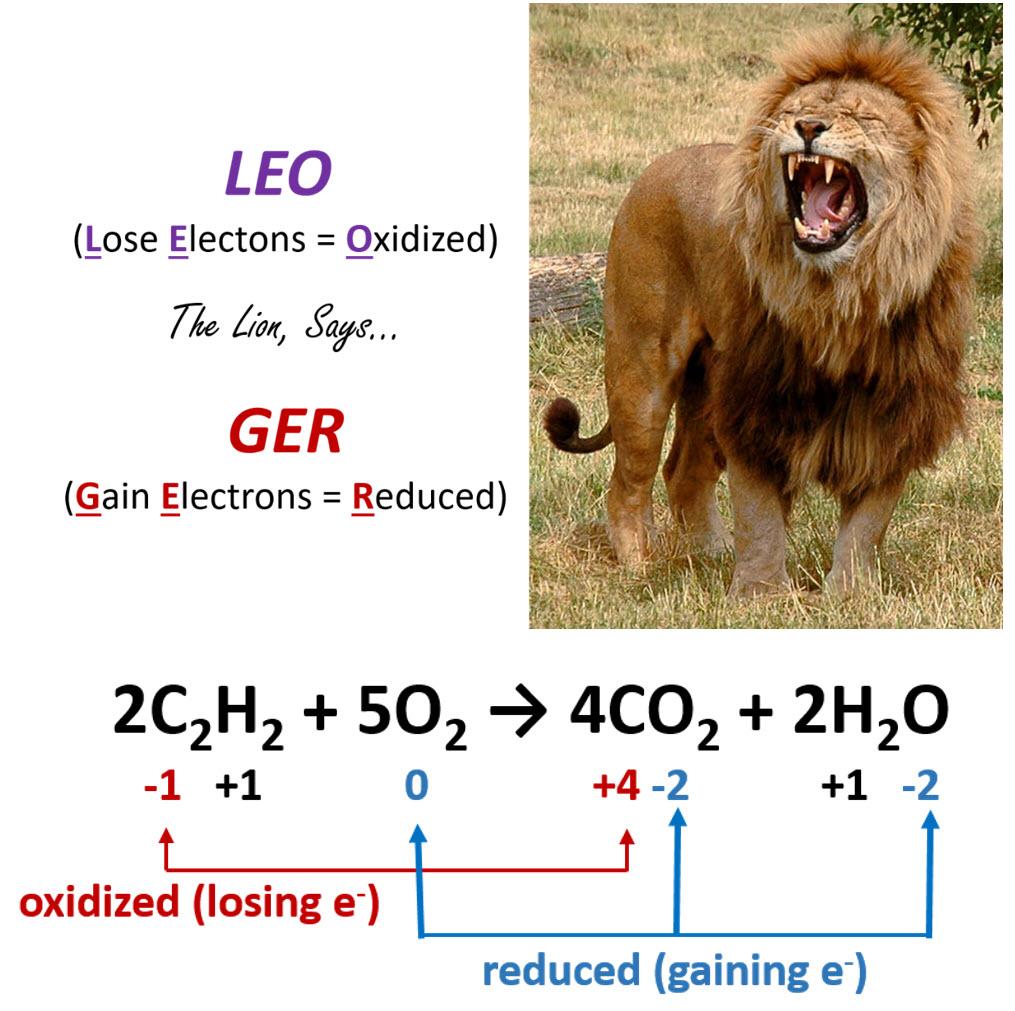

Evolution of Oxidation and Reduction Definitions

Historically, the terms oxidation and reduction were primarily associated with the addition or removal of oxygen from a substance. However, modern chemistry defines these processes more broadly in terms of electron transfer. When electrons are exchanged during a chemical reaction, one species undergoes oxidation while another undergoes reduction, a coupled process collectively known as a redox reaction.

Understanding Oxidation States

Instead of directly tracking electron movement, we can determine if a species has been oxidized or reduced by examining its oxidation state. The oxidation state, sometimes referred to as the oxidation number, is a hypothetical charge assigned to an atom in a molecule or ion, assuming that all bonds are ionic. An increase in an atom's oxidation state signifies oxidation, indicating a loss of electrons, while a decrease in oxidation state signifies reduction, indicating a gain of electrons. It is important to note that while "oxidation state" and "oxidation number" are often used interchangeably, IUPAC recommends reserving "oxidation number" specifically for the Roman numerals used to denote the oxidation state of transition metals.

Fundamental Rules for Assigning Oxidation States

To consistently determine oxidation states, a set of established rules is followed:

1. The oxidation state of any uncombined element is 0.
2. For a monatomic ion, its oxidation state is equal to the charge on the ion.
3. In a binary compound, the more electronegative element is assigned the oxidation state it would have if it were an ion.
4. Fluorine always has an oxidation state of -1 in its compounds.
5. Oxygen typically has an oxidation state of -2, except when combined with fluorine (where it is +2, as in OF₂) or in peroxides (such as H₂O₂ or Na₂O₂), where it is -1.
6. Hydrogen usually has an oxidation state of +1 in its compounds, unless it is bonded to a metal (forming a metal hydride), in which case its oxidation state is -1.
7. In compounds, elements from Group 1, Group 2, and aluminum consistently exhibit oxidation states of +1, +2, and +3, respectively.
8. The sum of the oxidation states of all atoms in a neutral compound must equal 0.
9. For a polyatomic ion, the sum of the oxidation states of all atoms must equal the overall charge of the ion.

Common Oxidation States to Memorize

Certain elements frequently exhibit specific oxidation states, which are crucial to remember for quick assignment:

Element	Oxidation state	Example
H	+1 (except in metal hydrides when it is -1)	+1 HCl -1 NaH
Group 1	Always +1	NaCl
Group 2	Always +2	CaCl2
Al	Always +3	AlCl3
O	-2 (except in peroxides when it is -1, and in OF2 when it is +2)	-2 Na2O -1 H2O2
F	Always -1	NaF
Cl	-1 (except in compounds with F or O when it is positive)	NaCl

Calculating Oxidation States in Compounds: Lead(IV) Chloride

Let's determine the oxidation state of lead in PbCl₄. We know that chlorine typically has an oxidation state of -1. Since there are four chlorine atoms, their combined oxidation state is 4 × (-1) = -4. As PbCl₄ is a neutral compound, the sum of all oxidation states must be zero. Therefore, the oxidation state of lead (Pb) must be +4 to balance the -4 from the chlorine atoms.

Calculating Oxidation States in Polyatomic Ions: Carbonate Ion

Consider the carbonate ion, CO₃^2-. Oxygen usually has an oxidation state of -2. With three oxygen atoms, their total contribution is 3 × (-2) = -6. Since the overall charge of the carbonate ion is -2, the sum of the oxidation states must equal -2. To achieve this, the oxidation state of carbon (C) must be +4, as +4 + (-6) = -2.

Calculating Oxidation States in Covalent Compounds: Dichlorine Trioxide

For Cl₂O₃, which is a covalent compound, we apply the rules similarly. Oxygen has an oxidation state of -2. With three oxygen atoms, their total contribution is 3 × (-2) = -6. Since Cl₂O₃ is a neutral molecule, the sum of the oxidation states must be zero. This means the two chlorine atoms must collectively have an oxidation state of +6. Therefore, each chlorine atom has an oxidation state of +6 / 2 = +3.

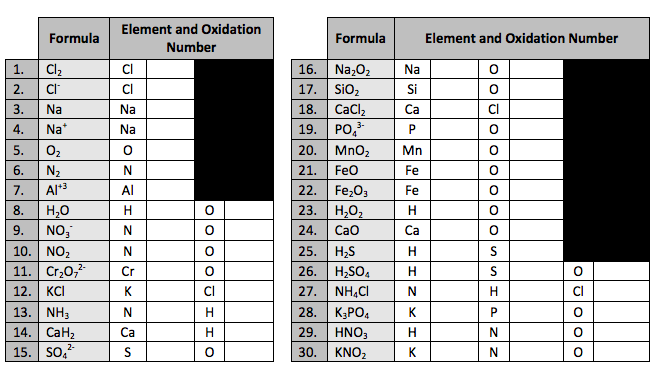

Visual Exercise: Assigning Oxidation States

Nomenclature Using Roman Numerals for Oxidation States

When naming compounds, particularly those involving transition metals or elements that can exhibit multiple oxidation states, Roman numerals are used to explicitly indicate the oxidation state of the central atom. This practice is often referred to as using oxidation numbers in nomenclature. For example:

• Manganese(IV) oxide (MnO₂) indicates that manganese is in the +4 oxidation state.
• Sulfur(VI) oxide (SO₃) indicates that sulfur is in the +6 oxidation state.
• Dichromate(VI) (Cr₂O₇^2-) indicates that chromium is in the +6 oxidation state.
• Phosphorus(V) chloride (PCl₅) indicates that phosphorus is in the +5 oxidation state.
• Phosphorus(III) chloride (PCl₃) indicates that phosphorus is in the +3 oxidation state.

Conversely, you should be able to name compounds given their formulas, specifying the oxidation state where appropriate:

• PbO₂ is lead(IV) oxide.
• SnCl₂ is tin(II) chloride.
• SbCl₃ is antimony(III) chloride.
• TiCl₄ is titanium(IV) chloride.
• BrF₅ is bromine(V) fluoride.

This system is particularly important for transition elements, where their variable oxidation states significantly influence their chemical properties and reactivity.

The Interconnected Nature of Oxidation and Reduction

In any chemical reaction where one chemical species undergoes oxidation, meaning it loses electrons, another species must simultaneously undergo reduction, which involves gaining those electrons. Because both reduction and oxidation occur together, these processes are collectively known as redox reactions.

Defining Oxidation and Reduction by Electron Transfer

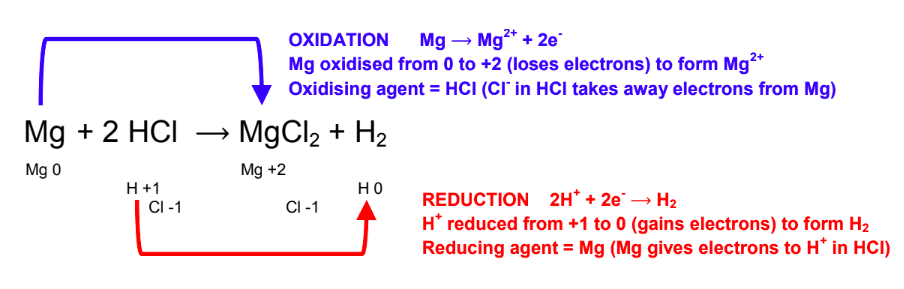

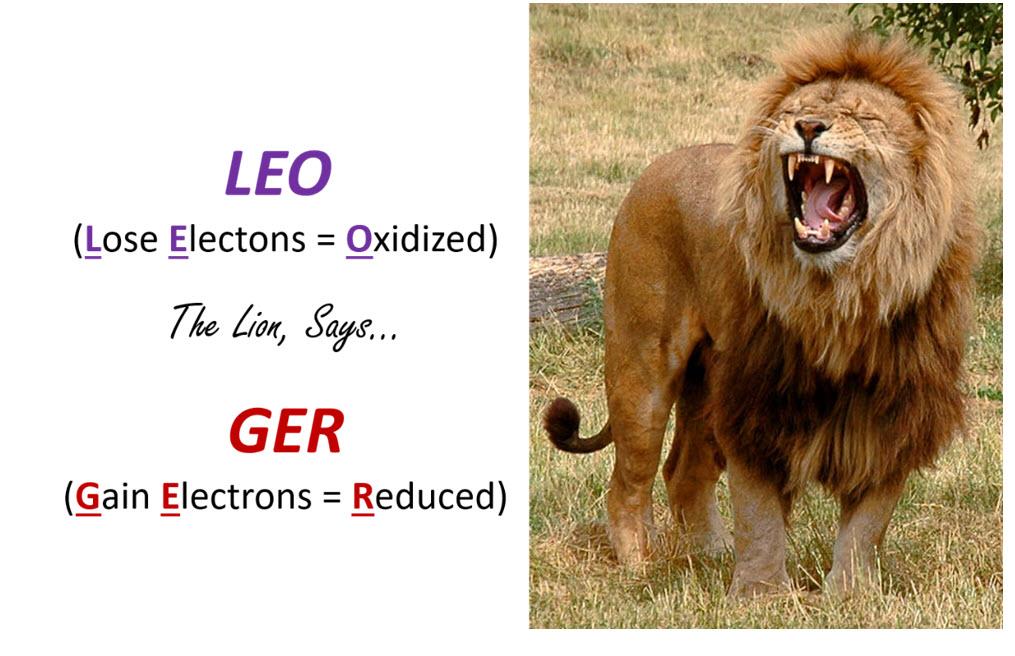

The fundamental definitions of oxidation and reduction are based on the transfer of electrons. Oxidation is precisely defined as the loss of electrons by a chemical species. Conversely, reduction is defined as the gain of electrons. Building upon these definitions, an oxidizing agent is a species that facilitates the removal of electrons from another substance, and in doing so, the oxidizing agent itself gains those electrons and is therefore reduced. Conversely, a reducing agent is a species that donates electrons to another substance, and in this process, the reducing agent itself loses electrons and is therefore oxidized.

Oxidation States as Indicators of Redox Processes

Oxidation states serve as a crucial tool for identifying and understanding redox reactions. A simple rule to remember is that if the oxidation state of an atom increases during a reaction, that atom has undergone oxidation. Conversely, if the oxidation state of an atom decreases, that atom has undergone reduction.

The Role of Oxidizing and Reducing Agents

It is important to note the reciprocal relationship between oxidizing and reducing agents and their own redox behavior. An oxidizing agent, by definition, removes electrons from another species. In the process of taking these electrons, the oxidizing agent itself gains electrons and is therefore reduced. Similarly, a reducing agent donates electrons to another species. As it gives away electrons, the reducing agent itself loses electrons and is therefore oxidized. This means that oxidizing agents are always reduced, and reducing agents are always oxidized.

Distinguishing Redox from Non-Redox Reactions Using Oxidation States

The defining characteristic that differentiates redox reactions from non-redox reactions is the change in oxidation states of the participating atoms. In a redox reaction, at least one atom will experience a change in its oxidation state, indicating electron transfer. In contrast, in non-redox reactions, the oxidation states of all atoms remain unchanged throughout the reaction. To illustrate this, consider the following examples and determine whether they represent redox or non-redox processes:

Verifying Your Understanding of Redox Concepts

To consolidate your understanding of redox definitions and the application of oxidation states, review the provided solutions to the previous examples. This will help confirm your ability to correctly identify redox reactions and the roles of oxidizing and reducing agents.

Understanding the Activity Series of Metals

The activity series serves as a crucial tool in chemistry, providing a systematic ranking of metals based on their propensity to undergo oxidation. Oxidation, in this context, refers to the loss of electrons. Metals positioned higher in the activity series are more readily oxidized, meaning they are more reactive. This increased reactivity also signifies that they are stronger reducing agents, as they have a greater tendency to donate electrons to other species. Students can typically find a comprehensive activity series in Section 25 of their data booklets.

Activity of Halogens and Nonmetals

In contrast to metals, the activity of halogens, which are Group 17 elements on the periodic table, is determined by their ease of reduction. Reduction involves the gain of electrons. Therefore, halogens that are more reactive are those that are more easily reduced. This characteristic also means that more reactive nonmetals, including halogens, act as stronger oxidizing agents, as they have a greater tendency to accept electrons from other species.

Understanding Fundamental Redox Terminology

Before delving into the mechanics of balancing redox reactions, it is crucial to establish a firm understanding of key terms. Redox reactions involve the transfer of electrons, and these terms describe the processes and the species involved. Oxidation refers to the loss of electrons, often accompanied by an increase in oxidation state. Conversely, reduction is the gain of electrons, leading to a decrease in oxidation state. A redox reaction is a chemical reaction where both oxidation and reduction occur simultaneously. An oxidising agent, also known as an oxidant, is the species that causes another substance to be oxidized, and in doing so, it itself gets reduced. Conversely, a reducing agent, or reductant, is the species that causes another substance to be reduced, and in doing so, it itself gets oxidized. Finally, a half-equation is a component of a redox reaction that shows either the oxidation or the reduction process, explicitly including the electrons transferred.

The Utility of Half-Equations in Redox Analysis

When examining a complete chemical equation, it can often be challenging to immediately discern which species is undergoing oxidation and which is undergoing reduction. For instance, in the reaction between hydrogen gas and fluorine gas, H₂ + F₂ → 2HF, the electron transfer is not explicitly shown. This is precisely where half-equations become invaluable. They serve as a powerful tool to isolate and illustrate the transfer of electrons, making the individual oxidation and reduction processes clear.

Constructing Half-Equations: Initial Steps

The process of constructing half-equations begins by separating the elements involved in the reaction into individual equations. For example, if we consider the reaction involving hydrogen and fluorine, we would initially write H₂ → 2H⁺ and F₂ → 2F^-. Following this, the next critical step is to determine the overall charge on each side of these preliminary equations. This often involves assigning oxidation states to the elements to track electron changes.

Balancing Charges with Electrons in Half-Equations

Once the initial half-equations are established, such as H₂ → 2H⁺ and F₂ → 2F^-, the next crucial step is to balance the charges by adding electrons. Electrons, being negatively charged, are always added to the more positive side of the equation to equalize the charge. It is important to remember that the goal is not necessarily to achieve a net charge of zero on both sides, but rather to ensure that the total charge on the reactant side equals the total charge on the product side. Adding electrons will always reduce the overall charge of the side to which they are added. Thus, for hydrogen, the balanced half-equation becomes H₂ → 2H⁺ + 2e^-, indicating oxidation. For fluorine, the balanced half-equation becomes 2e^- + F₂ → 2F^-, indicating reduction. By observing where the electrons are located, we can readily identify which equation represents oxidation (electrons as products) and which represents reduction (electrons as reactants).

Combining Half-Equations to Form the Net Ionic Equation

The power of half-equations is fully realized when they are combined to reconstruct the overall net ionic equation for a redox reaction. When adding two half-equations, the electrons must cancel out, meaning the number of electrons lost in the oxidation half-reaction must equal the number of electrons gained in the reduction half-reaction. If the electron counts are not equal, one or both half-equations must be multiplied by appropriate coefficients to achieve electron balance. For example, if we combine the half-equations F₂ + 2e^- → 2F^- and H₂ → 2H⁺ + 2e^-, the 2 electrons on both sides cancel out, yielding the net ionic equation: F₂ + H₂ → 2F^- + 2H⁺. This combined equation represents the complete redox reaction, showing the overall transformation without explicit electrons.

Distinguishing Redox Titrations from Acid-Base Titrations

Redox titrations differ fundamentally from acid-base titrations in the nature of the chemical reaction being monitored. Instead of an acid reacting with a base, a redox titration involves an oxidizing agent reacting with a substance that is oxidized, or vice versa. The primary goal is to determine the amount of a substance that has undergone either reduction or oxidation. Unlike acid-base titrations, where the simple M₁V₁ = M₂V₂ formula is often applicable, redox titrations require a more nuanced approach due to the stoichiometry of electron transfer.

Applications of Redox Titrations and Indicator Considerations

In many redox titrations, external indicators are not required because the redox changes themselves are accompanied by a visible color change. For instance, the presence of iodine in water or the reaction of methylene blue with glucose can serve as self-indicators. Redox titrations are widely employed across various industries. In the food and beverage sector, they are used to analyze wines for sulfur dioxide content or to determine the vitamin C content in foods. The pharmaceutical industry utilizes them for purity and content analysis of drugs. Furthermore, environmental analysis, such as the determination of dissolved oxygen in water, heavily relies on redox titrations.

Systematic Approach to Redox Titration Calculations

To determine the mass or concentration of an unknown substance in a redox titration, a systematic approach is followed. The process begins by writing out the two half-ionic equations for the oxidation and reduction reactions. These half-equations are then combined to form a balanced full ionic equation, ensuring that the number of electrons lost in oxidation equals the number of electrons gained in reduction. Next, the moles of the substance for which concentration and volume are known (typically the titrant in the burette) are calculated using the volume required to reach the equivalence point. Based on the stoichiometric ratio from the balanced full ionic equation, the moles of the reacting substance (usually in the flask) are determined. If the sample was diluted or taken from a larger volume, the moles in the original solution must be calculated by scaling up. Finally, the mass or concentration of the original sample can be calculated using the determined moles and the molar mass or original volume, respectively. The term "titre" refers specifically to the volume of solution added from the burette to reach the equivalence point of the titration.

Common Reagents and Their Redox Half-Equations

Several common reagents are frequently used in redox titrations, each with characteristic half-equations. Manganate(VII) ions (MnO₄⁻), also known as permanganate, act as a strong oxidizing agent and are reduced to manganese(II) ions (Mn²⁺) in acidic solution: MnO₄⁻ + 8H⁺ + 5e⁻ → Mn²⁺ + 4H₂O
Ethanedioate ions (C₂O₄²⁻) serve as a reducing agent, being oxidized to carbon dioxide:
 C₂O₄²⁻(aq) → 2CO₂(g) + 2e⁻
Iron(II) ions (Fe²⁺) can act as a reducing agent, losing electrons to become iron(III) ions (Fe³⁺):
Fe²⁺(s) → Fe³⁺(s) + e⁻
Dichromate(VI) ions (Cr₂O₇²⁻) are another powerful oxidizing agent, reduced to chromium(III) ions (Cr³⁺) in acidic solution:
Cr₂O₇²⁻(aq) + 14H⁺(aq) + 6e⁻ → 2Cr³⁺(aq) + 7H₂O(l)

Example: Analysis of Iron with Manganate(VII)

Consider an example where 24.30 cm³ of 0.010 mol dm⁻³ aqueous potassium manganate(VII) reacted with 25.0 cm³ of acidified FeSO₄(aq) to form Mn²⁺. This 25.0 cm³ sample was originally taken from a 250 cm³ flask. To determine the original mass of Fe²⁺ used, we first write the balanced half-equations and the overall ionic equation. The reduction half-equation for manganate(VII) is:
MnO₄⁻ + 8H⁺ + 5e⁻ → Mn²⁺ + 4H₂O The oxidation half-equation for iron(II) is: Fe²⁺ → Fe³⁺ + e⁻
To balance the electrons, the iron(II) half-equation is multiplied by 5: 5Fe²⁺ → 5Fe³⁺ + 5e⁻
Combining these gives the overall ionic equation: MnO₄⁻ + 8H⁺ + 5Fe²⁺ → Mn²⁺ + 4H₂O + 5Fe³⁺
From this, the stoichiometric ratio of MnO₄⁻ to Fe²⁺ is 1:5.
Next, calculate the moles of MnO₄⁻ used: Moles MnO₄⁻ = concentration × volume = 0.010 mol dm⁻³ × 0.0243 dm³ = 0.000243 mol
Using the 1:5 ratio, the moles of Fe²⁺ in the 25 cm³ flask are: Moles Fe²⁺ = 0.000243 mol × 5 = 0.001215 mol
Since this 25 cm³ sample was taken from a 250 cm³ flask, the total moles of Fe²⁺ in the original 250 cm³ solution are:
Moles Fe²⁺ in 250 cm³ = 0.001215 mol × (250 cm³ / 25 cm³) = 0.001215 mol × 10 = 0.01215 mol
Finally, calculate the original mass of Fe²⁺ (molar mass of Fe is approximately 55.845 g/mol, often rounded to 56 g/mol for simpler calculations): Mass Fe²⁺ = molar mass × moles = 56 g/mol × 0.01215 mol = 0.68 g

The Iodine-Thiosulfate Reaction

The iodine-thiosulfate reaction is a common redox titration method, particularly useful when an oxidizing agent reacts with excess iodide ions to produce iodine. The general reaction for the formation of iodine is: 2I⁻(aq) + oxidizing agent → I₂(aq) + reduced product The iodine produced is then titrated with a standard solution of sodium thiosulfate (Na₂S₂O₃). Starch is used as an indicator in this titration. The half-equations for this reaction are: Oxidation: 2S₂O₃²⁻ → S₄O₆²⁻ + 2e⁻
Reduction: I₂ + 2e⁻ → 2I⁻
The overall balanced equation for the titration is: 2S₂O₃²⁻(aq) + I₂(aq) → 2I⁻(aq) + S₄O₆²⁻(aq)

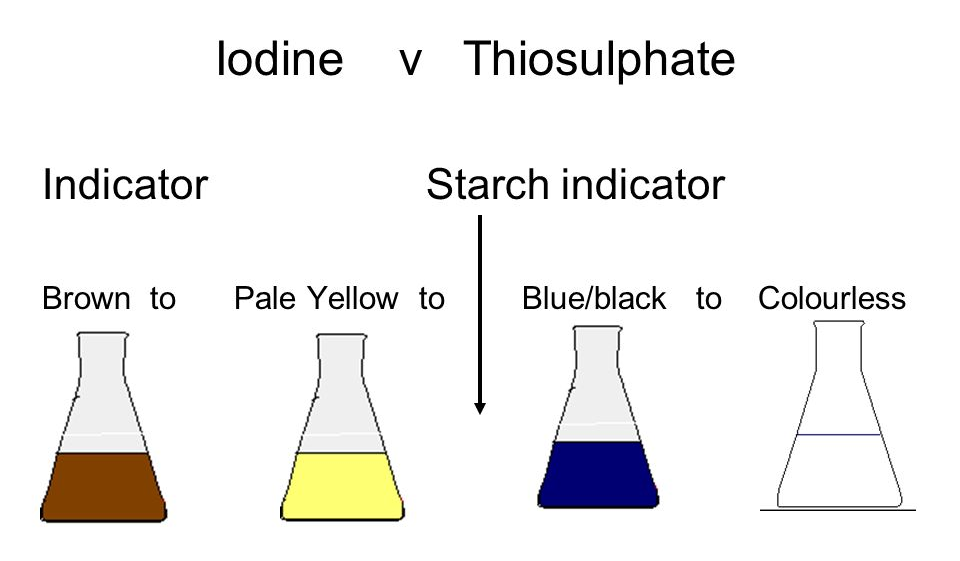

In the presence of starch, iodine forms a deep blue complex. As the thiosulfate is added, it reacts with the iodine, causing the blue color to disappear precisely at the equivalence point, signaling the end of the titration.

Introduction to the Winkler Method

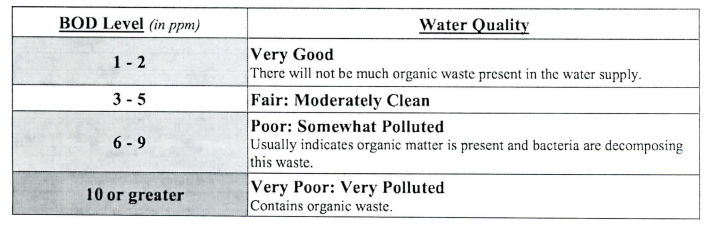

The Winkler method is a crucial redox titration technique used to measure the dissolved oxygen content in water. Dissolved oxygen is a vital indicator of water quality; lower oxygen levels often correlate with higher levels of pollution. A related concept is Biological Oxygen Demand (BOD), which quantifies the amount of oxygen consumed by microorganisms to decompose organic matter in a water sample over a specific period (typically 5 days) at a given temperature. A high BOD indicates lower dissolved oxygen levels, suggesting greater organic pollution.

Detailed Steps of the Winkler Method

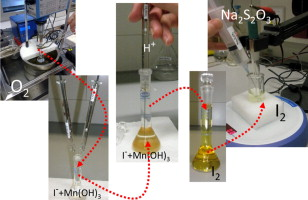

The Winkler method employs a series of redox reactions to determine dissolved oxygen. Initially, the dissolved oxygen (O₂) in the water sample is "fixed" by adding a manganese(II) salt, such as MnSO₄, in a basic solution. The oxygen oxidizes the Mn(II) to higher oxidation states, typically Mn(IV), forming a precipitate of manganese dioxide.
The first step involves the oxidation of Mn(II) by dissolved oxygen:
2Mn²⁺(aq) + O₂(g) + 4OH⁻(aq) → 2MnO₂(s) + 2H₂O(l)
Next, acidified iodide ions (I⁻) are added to the solution.
The Mn(IV) in the manganese dioxide then oxidizes the iodide ions to iodine (I₂):
MnO₂(s) + 2I⁻(aq) + 4H⁺(aq) → Mn²⁺(aq) + I₂(aq) + 2H₂O(l)
Finally, the liberated iodine is titrated with a standard solution of sodium thiosulfate (Na₂S₂O₃), using starch as an indicator: 2S₂O₃²⁻(aq) + I₂(aq) → 2I⁻(aq) + S₄O₆²⁻(aq)

Alternative Representation of the Winkler Method

Another way to represent the initial stages of the Winkler method involves the rapid oxidation of Mn²⁺ ions to Mn³⁺ by dissolved oxygen under alkaline conditions, forming a pale brown precipitate of Mn(OH)₃: 4Mn(OH)₂(aq) + O₂(g) + 2H₂O(l) → 4Mn(OH)₃(s)
Subsequently, a sample of river or stream water, after being shaken with excess alkaline Mn²⁺ ions, has its precipitate reacted with an excess of potassium iodide (KI).
This reaction oxidizes the iodide to iodine (I₂): 2KI(aq) + 2Mn(OH)₃(s) → I₂(aq) + 2Mn(OH)₂(aq) + 2KOH(aq)

Titration in the Winkler Method

The amount of iodine (I₂) produced in the preceding steps is then precisely determined by titration with a sodium thiosulfate solution of known concentration. Starch is added as an indicator, which forms a deep blue complex with iodine. The endpoint of the titration is marked by the disappearance of this blue color as the thiosulfate reacts with all the iodine. The titration reaction is: 2S₂O₃²⁻(aq) + I₂(aq) → S₄O₆²⁻(aq) + 2I⁻(aq)

Example Calculation: Winkler Method for Dissolved Oxygen

Let's consider a 500 cm³ water sample analyzed for dissolved oxygen using the Winkler method. After the addition of MnSO₄ in basic solution and subsequent acidification with KI, 12.50 cm³ of 0.0500 mol dm⁻³ Na₂S₂O₃(aq) was required to react with the iodine produced. We aim to calculate the dissolved oxygen content of the water in g dm⁻³.
First, calculate the moles of S₂O₃²⁻ used: Moles S₂O₃²⁻ = concentration × volume = 0.0500 mol dm⁻³ × 0.01250 dm³ = 0.000625 mol
From the titration equation (2S₂O₃²⁻ + I₂ → 2I⁻ + S₄O₆²⁻), the ratio of S₂O₃²⁻ to I₂ is 2:1.
Moles I₂ = 0.000625 mol S₂O₃²⁻ × (1 mol I₂ / 2 mol S₂O₃²⁻) = 0.0003125 mol I₂
Now, we need to relate moles of I₂ back to moles of O₂ using the earlier reactions:
MnO₂(s) + 2I⁻(aq) + 4H⁺(aq) → Mn²⁺(aq) + I₂(aq) + 2H₂O(l) (Ratio I₂ : MnO₂ is 1:1)
2Mn²⁺(aq) + O₂(g) + 4OH⁻(aq) → 2MnO₂(s) + 2H₂O(l) (Ratio MnO₂ : O₂ is 2:1)
Combining these, the overall stoichiometric relationship between O₂ and I₂ is 1 mol O₂ to 2 mol I₂.
Moles O₂ = 0.0003125 mol I₂ × (1 mol O₂ / 2 mol I₂) = 0.00015625 mol O₂
Next, calculate the mass of O₂ in the 500 cm³ sample (Molar mass of O₂ = 32.00 g/mol):
Mass O₂ = molar mass × moles = 32.00 g/mol × 0.00015625 mol = 0.00500 g
This mass is present in 500 cm³ (0.500 dm³) of water.
To express the dissolved oxygen content in g dm⁻³: Dissolved oxygen = 0.00500 g / 0.500 dm³ = 0.0100 g dm⁻³

Alternative Example Calculation: Winkler Method

Let's consider another example where the moles of S₂O₃²⁻ are 0.0000348 mol.
Moles S₂O₃²⁻ = 0.00200 mol dm⁻³ × 0.01740 dm³ = 0.0000348 mol
Using the 2:1 ratio of S₂O₃²⁻ to I₂: Moles I₂ = 0.0000348 mol S₂O₃²⁻ × 0.5 = 0.0000174 mol I₂
Using the overall 1:2 ratio of O₂ to I₂ (derived from the reactions:
2Mn²⁺ + O₂ → 2MnO₂ and MnO₂ + 2I⁻ → I₂): Moles O₂ = 0.0000174 mol I₂ × 0.5 = 8.70 × 10⁻⁶ mol O₂
If this amount of oxygen was present in a 50 cm³ (0.050 dm³) sample, the dissolved oxygen concentration would be: Dissolved oxygen = 8.70 × 10⁻⁶ mol / 0.050 dm⁻³ = 1.74 × 10⁻⁴ mol dm⁻³
The key reactions involved are: 2Mn²⁺(aq) + O₂(g) + 4OH⁻(aq) → 2MnO₂(s) + 2H₂O(l)
MnO₂(s) + 2I⁻(aq) + 4H⁺(aq) → Mn²⁺(aq) + I₂(aq) + 2H₂O(l)
2S₂O₃²⁻(aq) + I₂(aq) → 2I⁻(aq) + S₄O₆²⁻(aq)

Introduction to Voltaic Cells

Voltaic cells, also known as galvanic cells, are electrochemical cells that convert chemical energy into electrical energy through spontaneous redox reactions. These cells are typically constructed from two different metals, each immersed in a solution containing its own ions, and connected by an external wire. Within a voltaic cell, two distinct reactions occur: an oxidation reaction and a reduction reaction.

Mechanism of Electron Flow and Electromotive Force

In a voltaic cell, redox reactions are carefully organized to ensure that the energy released is made available as electrical energy. The oxidation and reduction processes are physically separated into individual compartments called half-cells, which are also referred to as electrodes. Electrons are then compelled to flow through an external circuit connecting these half-cells. The direction of electron flow is always from the more reactive metal, which acts as the anode (where oxidation occurs), to the less reactive metal, which functions as the cathode (where reduction occurs). A voltmeter connected in the external circuit measures the potential difference between the two half-cells, which is known as the electromotive force (e.m.f.) or cell voltage.

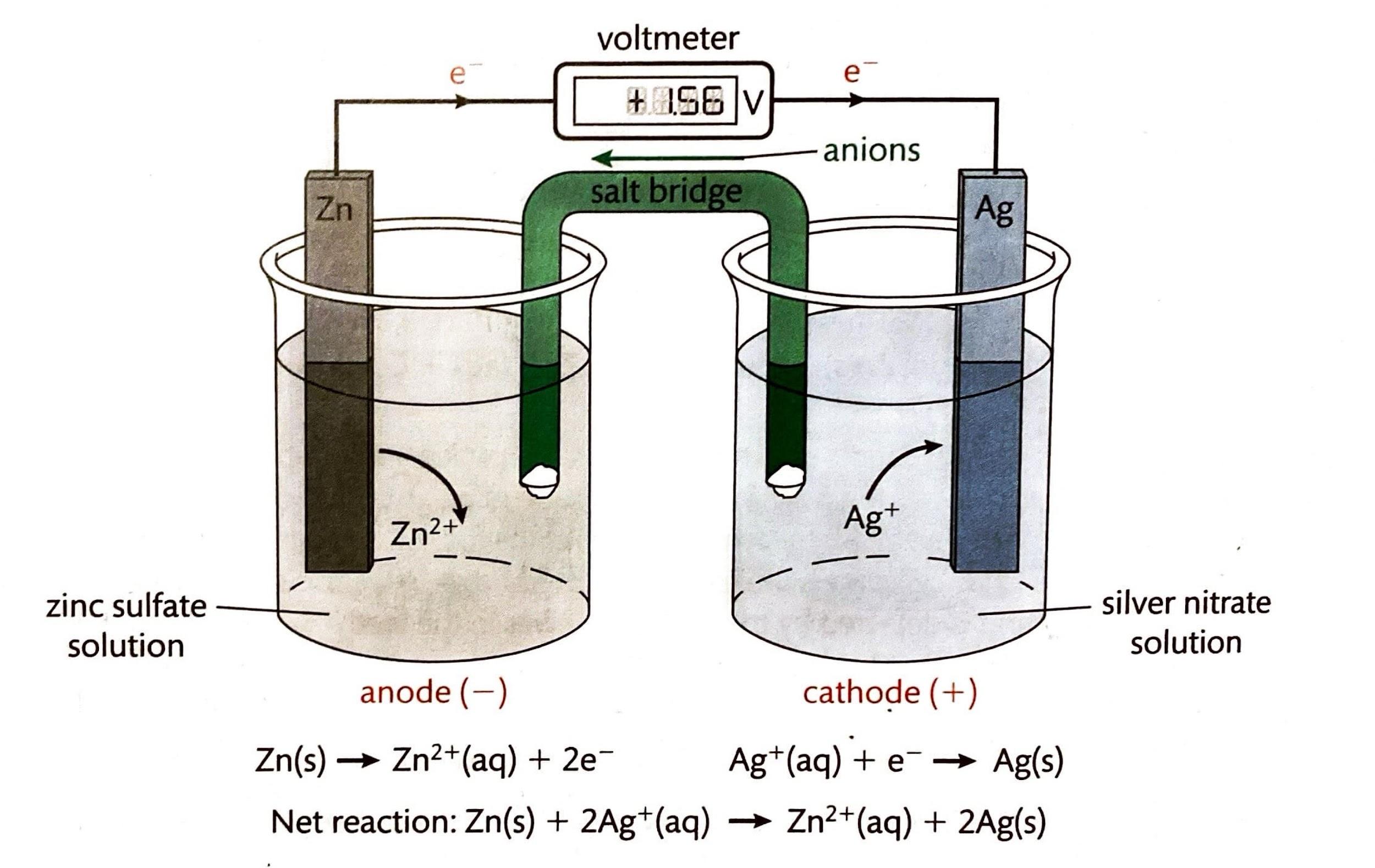

Illustrative Example: Zinc-Copper Voltaic Cell

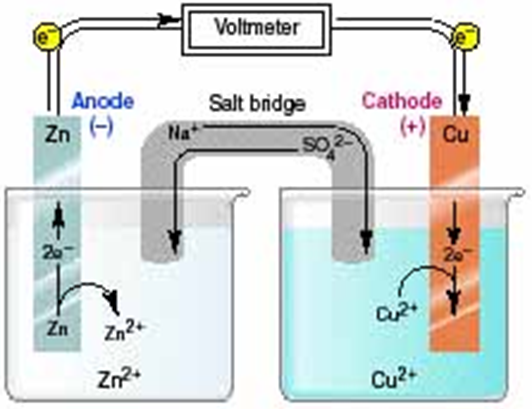

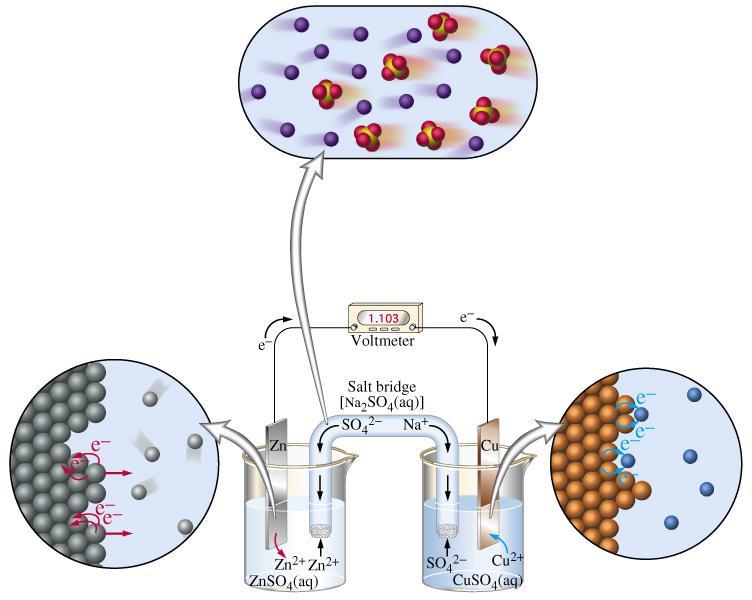

Consider a voltaic cell constructed with zinc and copper electrodes. Zinc is more reactive than copper, meaning it loses electrons more readily. Consequently, at the zinc electrode, zinc metal undergoes oxidation to form Zn²⁺ ions, releasing electrons into the external circuit. This electrode is considered the most negative electrode because it is the site of oxidation. These released electrons then travel through the external circuit to the copper electrode. At the copper electrode, an equivalent number of electrons are consumed to reduce Cu²⁺ ions from the solution, forming solid copper atoms. This electrode is the most positive electrode as it is the site of reduction.

The Role of the Salt Bridge

A crucial component of a voltaic cell is the salt bridge, typically containing an electrolyte like KNO₃. The salt bridge serves as an ionic connection between the two ionic solutions in the half-cells. Its primary function is to allow the free movement of ions, thereby maintaining electrical neutrality in each half-cell as the redox reactions proceed. Without a salt bridge, charge would build up in each half-cell, quickly stopping the flow of electrons. The ions within the salt bridge migrate to balance the charge accumulation: anions move towards the anode to compensate for the buildup of positive charge (due to cation formation), and cations move towards the cathode to compensate for the consumption of positive charge (due to cation reduction).

Considerations for Salt Bridge Electrolytes

When selecting an electrolyte for the salt bridge, it is imperative that the salt used is unreactive with both the electrodes and the electrode solutions. For instance, potassium chloride (KCl) would not be a suitable choice for a copper-based system because chloride ions can form stable complexes with copper ions, which would interfere with the cell's operation and potentially alter the electrode potentials.

Electrode Reactions and Terminology

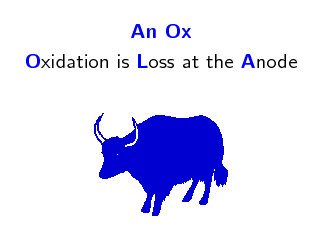

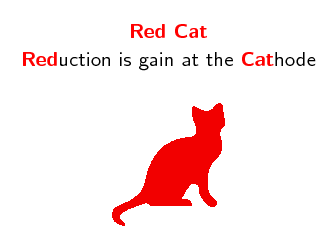

In a voltaic cell, specific reactions occur at each electrode. At the anode, oxidation takes place, involving the loss of electrons. For example, in a zinc half-cell, the reaction is Zn(s) → Zn²⁺(aq) + 2e^-. Conversely, at the cathode, reduction occurs, involving the gain of electrons. In a copper half-cell, the reaction is Cu²⁺(aq) + 2e^- → Cu(s).

Standard Cell Diagram Notation

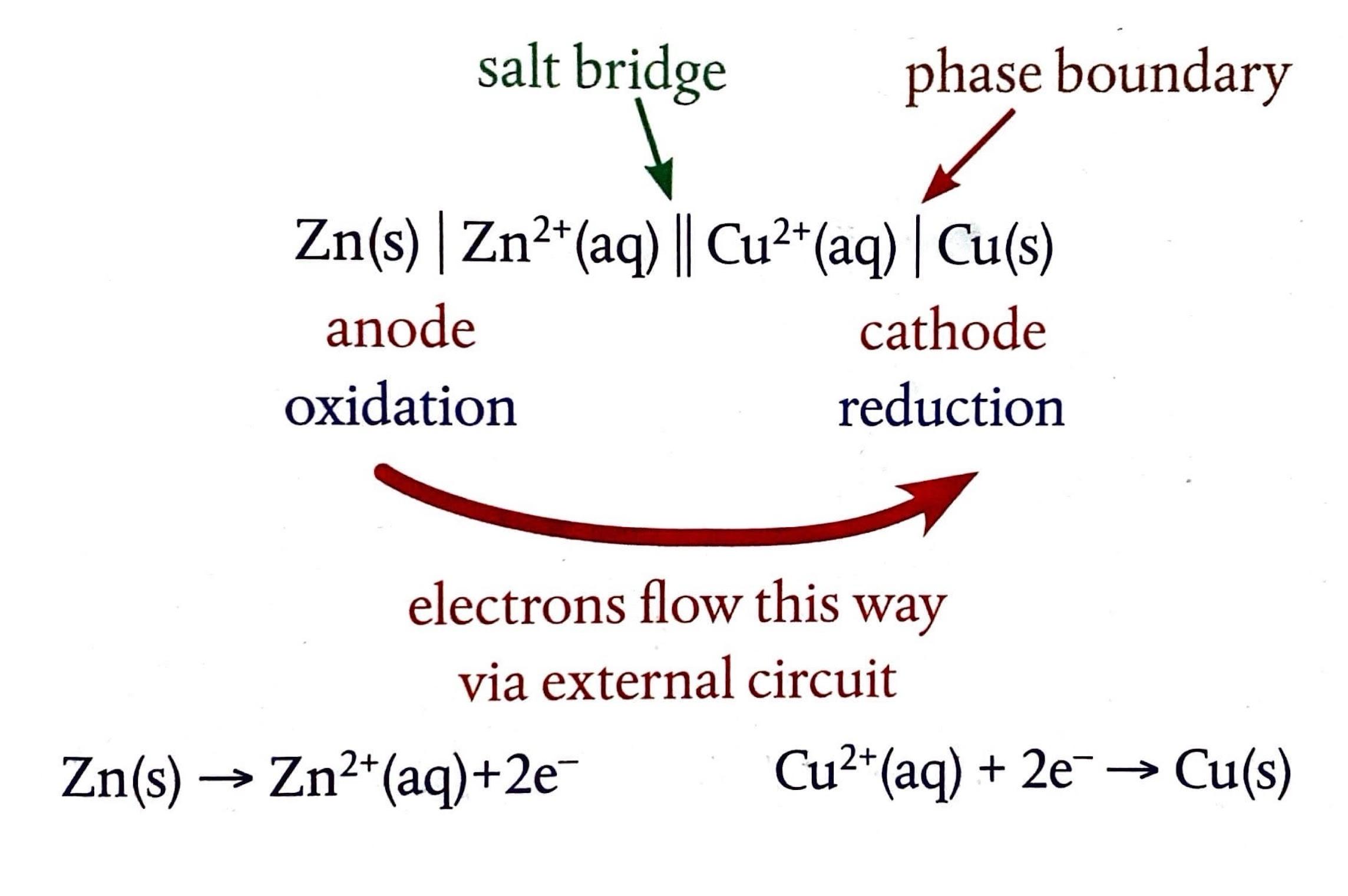

A shorthand notation, known as a cell diagram or cell notation, is used to represent voltaic cells concisely. This convention follows specific rules:

• A single vertical line ( | ) denotes a phase boundary, such as between a solid electrode and its aqueous solution.
• A double vertical line ( || ) represents the salt bridge.
• The aqueous solutions of each electrode are placed adjacent to the salt bridge.
• By convention, the anode is generally placed on the left side of the diagram, and the cathode on the right, indicating that electrons flow from left to right.
• Spectator ions, which do not participate in the redox reaction, are typically omitted from the cell diagram.
• If a half-cell contains two different ions, they are separated by a comma.

Interpreting Cell Diagrams and Electrode Roles

In a standard cell diagram, the left-hand side represents the negative electrode, which is the anode where oxidation occurs. This electrode typically corresponds to the metal higher on the activity series. Conversely, the right-hand side represents the positive electrode, which is the cathode where reduction takes place. For example, consider the cell diagram Pt(s) | Fe²⁺(aq), Fe³⁺(aq) || Ti³⁺(aq), Ti²⁺(aq) | Pt(s). Here, the left half-cell involves the Fe²⁺/Fe³⁺ couple, and the right half-cell involves the Ti³⁺/Ti²⁺ couple. Another example is Al(s) | Al³⁺(aq) || Pb²⁺(aq) | Pb(s).

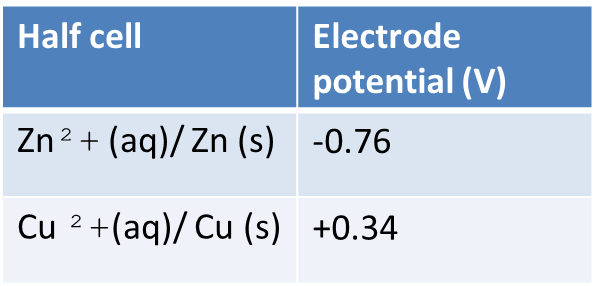

Reversibility of Electrode Reactions and Electrode Potentials

The reactions occurring at each electrode in a voltaic cell are reversible. For instance, the zinc half-reaction can be written as Zn²⁺(aq) + 2e^- ↔ Zn(s), and the copper half-reaction as Cu²⁺(aq) + 2e^- ↔ Cu(s). The actual direction of these reactions in a voltaic cell depends on the relative ease with which each metal loses electrons, or its tendency to be oxidized. This tendency is quantified by its electrode potential.

Predicting Reaction Direction from Electrode Potentials

A half-cell with a more negative electrode potential indicates a greater tendency for the species to be oxidized. In the zinc-copper cell, the zinc half-cell has a more negative electrode potential compared to the copper half-cell. Therefore, zinc will be oxidized (the reaction Zn(s) → Zn²⁺(aq) + 2e^- proceeds forward), while copper ions will be reduced (the reaction Cu²⁺(aq) + 2e^- → Cu(s) proceeds forward). Generally, the more reactive a metal, the more negative its standard electrode potential. The overall spontaneous cell reaction is obtained by combining the oxidation half-reaction and the reduction half-reaction. For example, the overall reaction for the zinc-copper cell is Cu²⁺(aq) + Zn(s) ↔ Zn²⁺(aq) + Cu(s).

The Activity Series and Redox Predictions

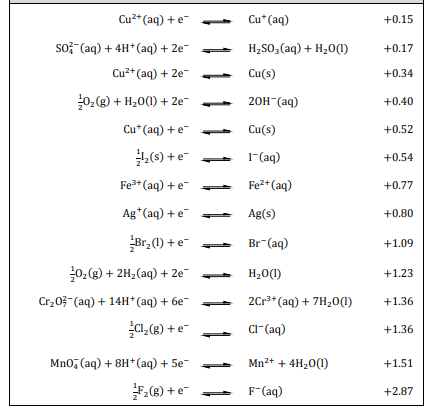

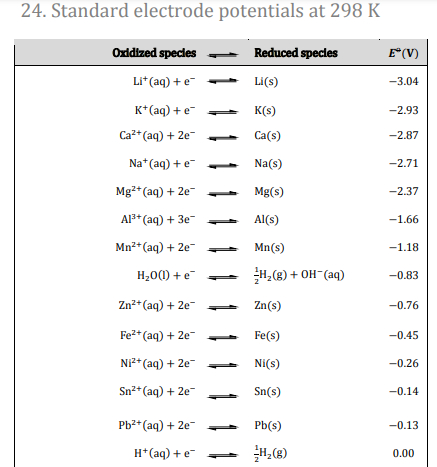

The activity series, often found in Section 19 of the IB Chemistry data booklet, is a valuable tool that ranks metals according to their ease of oxidation. This series allows us to predict whether a redox reaction will occur spontaneously. More reactive elements, which are higher on the activity series, will displace less reactive elements from their compounds. For example, iron (Fe) is more reactive than copper (Cu), so iron metal will displace copper from copper sulfate solution: Fe(s) + CuSO₄(aq) → FeSO₄(aq) + Cu(s). In the context of voltaic cells, the most reactive metal will undergo oxidation (acting as the anode and producing electrons), while the least reactive metal will undergo reduction (acting as the cathode and accepting electrons).

Voltage Variation in Different Voltaic Cells

The specific combination of different half-cells used in a voltaic cell directly influences the overall voltage (e.m.f.) produced by the cell. Each unique pairing of half-cells will result in a distinct potential difference, reflecting the relative tendencies of the involved species to undergo oxidation and reduction.
